Power!
Premium 12.8V lithium iron phosphate batteries manufactured to our specification and individually tested in the UK. Engineered for canal boats, marine vessels, campervans, and off-grid living with built-in Bluetooth monitoring.
Lithium Iron Phosphate represents the pinnacle of battery technology for marine and off-grid applications. Here's how it compares.
Whether you're cruising the canals, wild camping, or living off-grid, DS4A batteries deliver reliable power when and where you need it.
Use 100% of your capacity without damage. Lead-acid can only safely use 50%, meaning you need twice the battery bank.
Charge at up to 200A. Get back to full charge faster from solar, alternator, or shore power.
Built-in heating system activates automatically below +5°C for safe cold weather charging. Discharge from -20°C to +60°C â perfect for UK winters.
LiFePO4 is the safest lithium chemistry â superior thermal and chemical stability with tested protection against short circuit, overcharge, and over-discharge.
Our dedicated Android app lets you monitor voltage, current, temperature, and state of charge in real-time via Bluetooth.
Connect multiple batteries in parallel to increase capacity. Easily scale your system as needs grow.
50% lighter than lead-acid equivalents. Crucial weight savings for boats and mobile applications.
Manufactured to our specification by a leading global supplier. Every battery individually tested and QC'd in the UK.
Professional-grade LiFePO4 batteries manufactured to our specification and individually tested in the UK. Choose the capacity that fits your needs.
Popular Choice

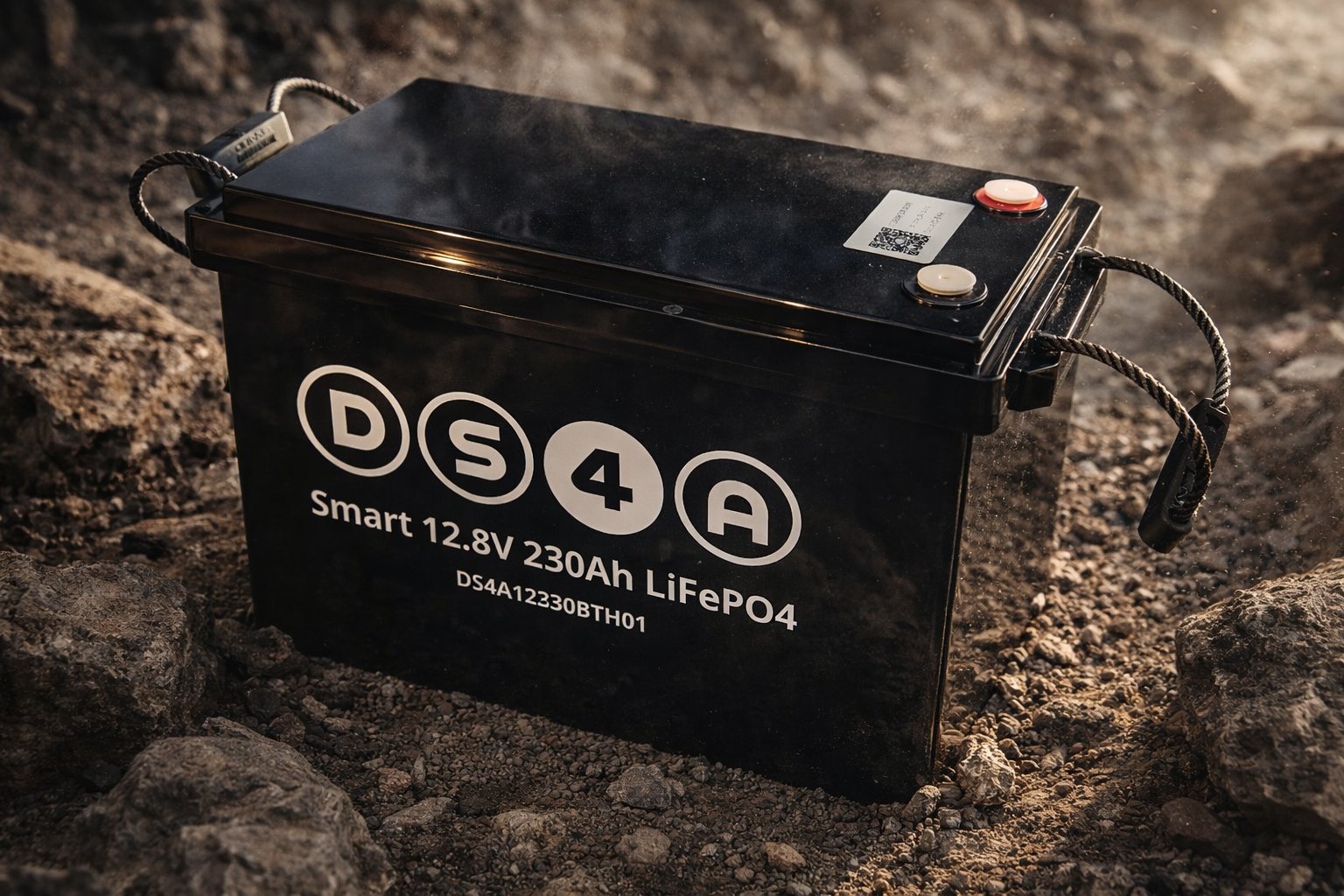

Smart LiFePO4 Battery with Bluetooth
High Capacity

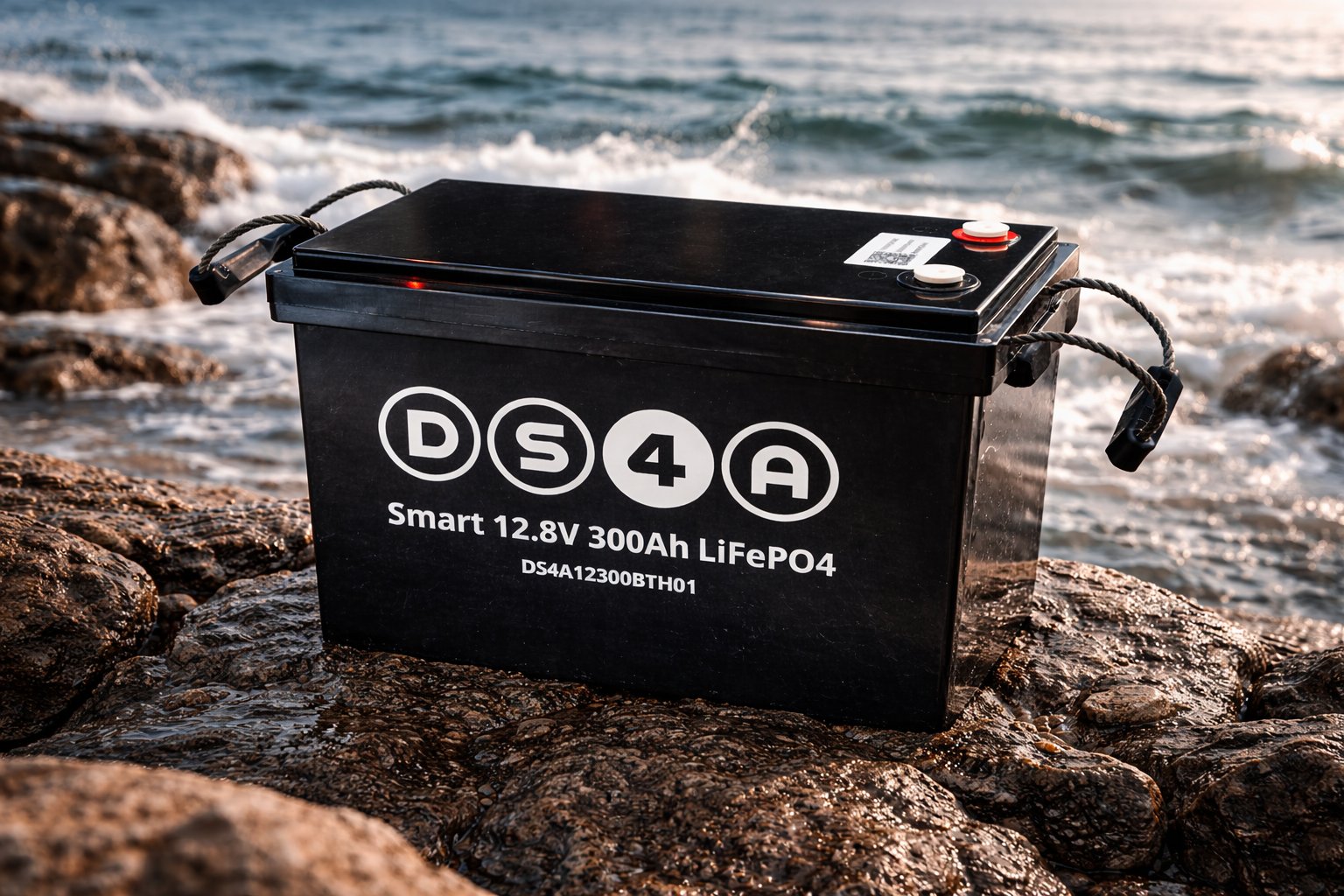

Smart LiFePO4 Battery with Bluetooth
Every DS4A battery features an integrated Battery Management System â one of the most reliable and widely-used BMS platforms in the industry. Monitor everything from your smartphone using the dedicated DS4A Android app.
The BMS provides comprehensive protection and real-time data access via Bluetooth, giving you complete visibility and control over your battery system.
Voltage, current, SoC & temperature
Automatic passive cell balancing
Cell & pack level protection
Prevents deep discharge damage
High & low temp cutoffs
Charge & discharge protection
Instant protection & recovery
Ultra-low standby current

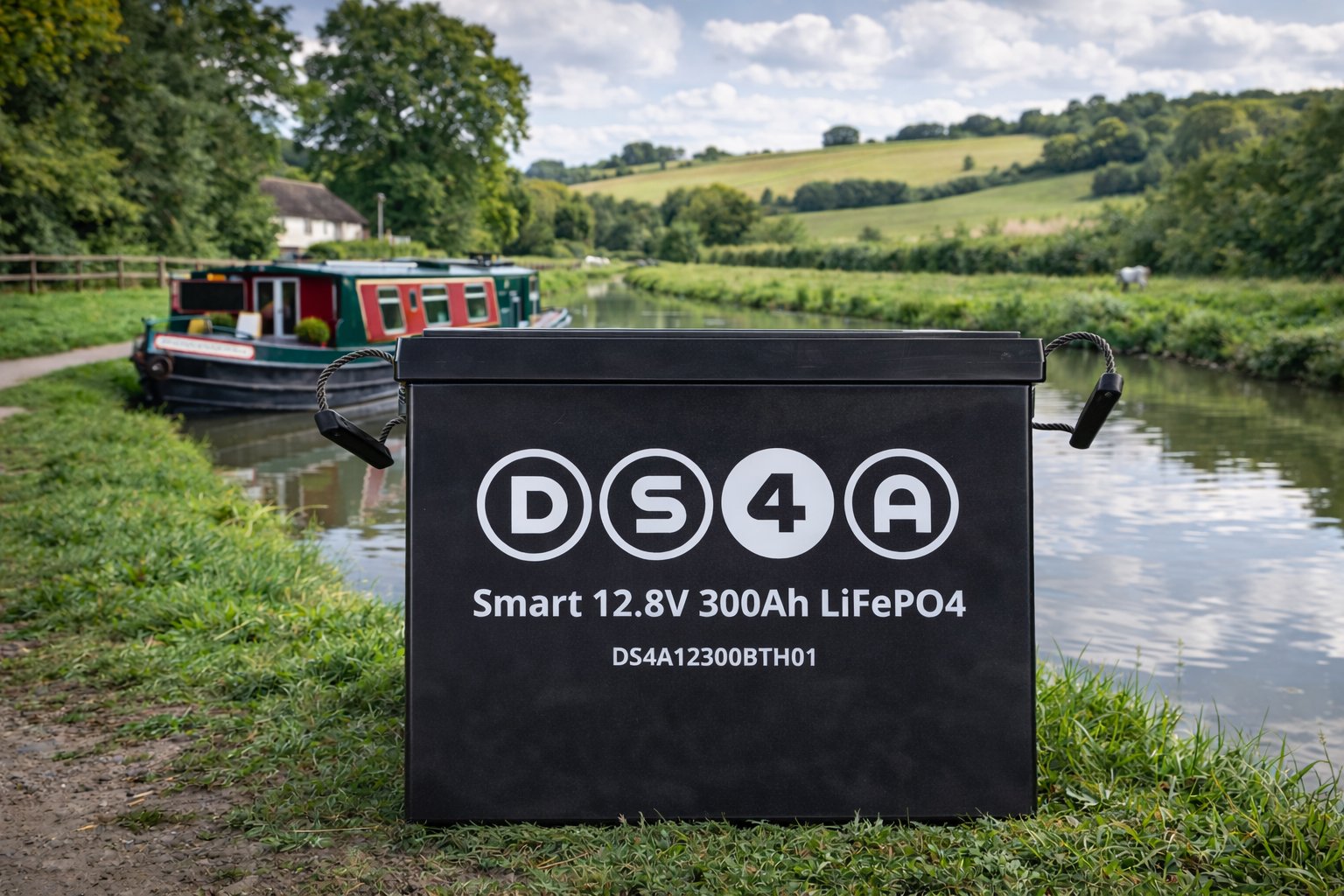

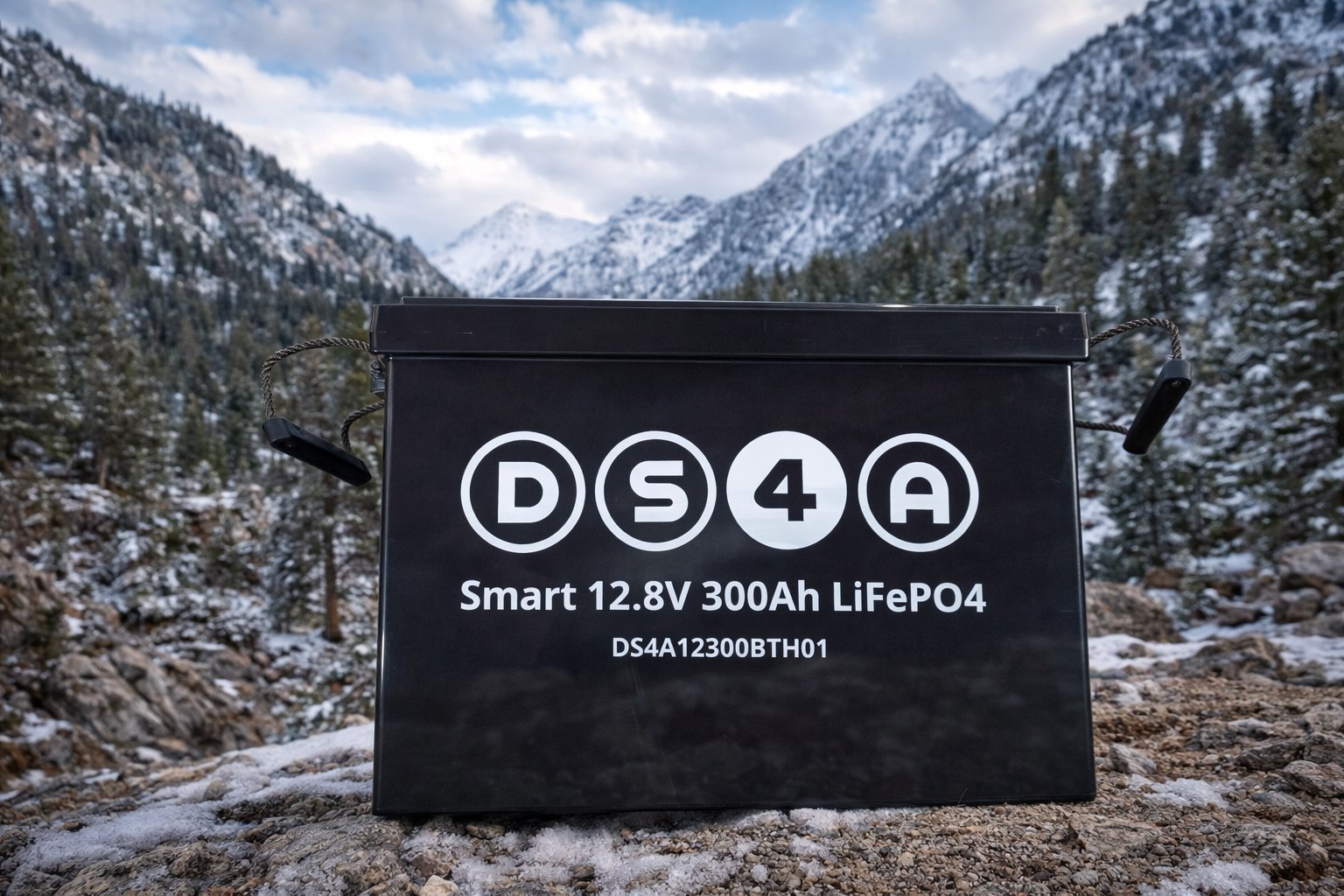

From the UK canal network to remote off-grid locations, DS4A batteries power your lifestyle.
Complete technical specifications for both DS4A Smart LiFePO4 battery models.
| Specification | DS4A 230Ah | DS4A 300Ah |
|---|---|---|
| Nominal Voltage | 12.8V | 12.8V |
| Nominal Capacity | 230Ah | 300Ah |
| Energy Capacity | 2944Wh | 3840Wh |
| Cell Configuration | 4S1P (LiFePO4) | 4S1P (LiFePO4) |
| Max Charge Current | 150A | 200A |
| Max Discharge Current | 150A | 200A |
| Recommended Charge / Discharge (< 0.5C) | 115A | 150A |
| Charge Voltage | 14.4V | 14.4V |
| Discharge Cut-off Voltage | 10.8V | 10.8V |
| Cell Over-Voltage Protection | 3.65V | 3.65V |
| Cell Under-Voltage Protection | 2.7V | 2.7V |
| Charge Temperature Range | 0°C to +55°C | 0°C to +55°C |
| Discharge Temperature Range | -20°C to +60°C | -20°C to +60°C |
| Cycle Life (25°C, 80% DoD) | âĽ4000 cycles | âĽ4000 cycles |
| Cycle Life (55°C) | âĽ2000 cycles | âĽ2000 cycles |
| Dimensions (LĂWĂH) | 385 Ă 215 Ă 300mm (inc. terminals) | 385 Ă 215 Ă 300mm (inc. terminals) |
| Weight | 21kg (Âą1kg) | 30kg (Âą1kg) |
| Communication | Bluetooth | Bluetooth |
| Parallel Connection | Supported | Supported |
| Integrated Heater | Yes | Yes |
| Heater Activation | +5°C | +5°C |
| BMS Cell Balancing | Active (from 3.4V) | Active (from 3.4V) |
| Short Circuit Protection | Yes | Yes |
Ready to upgrade your power system? Have questions about our batteries? Fill in the form below and we'll get back to you promptly.
Join the growing number of Canal Boaters, Sailors, Van-Lifers and Off-Gridders who've made the switch to DS4A Smart LiFePO4 batteries.
